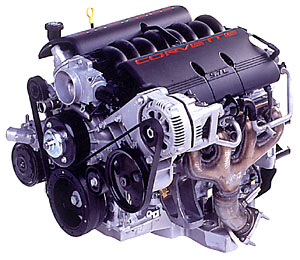

5.7L V8 - LS1 Engine Specifications








Product Specifications

Type:
5.7L V8

Displacement:
5665 cc

Compression Ratio:
10.1:1

Valve Configuration:
Overhead Valves

Manufactured:
Romulus, Michigan
St. Catharines, Ontario

Valve Lifters:
Hydraulic Roller

Firing Order:
1-8-7-2-6-5-4-3

Bore x Stroke:
99.00 x 92.00 mm

Fuel System:
Sequential Fuel Injection

Horsepower:
345 @ 5600 rpm (Y)
320 @ 5200rpm (F perf. opt.)
305 @ 5200 rpm (F)
285 @ 5200 rpm (Holden V-car Domestic)
315 @ 5200 rpm (Holden V-car)

Torque:
350 @ 4400 rpm (Y)
345 @ 4400rpm (F perf. Opt.)
335 @ 4000rpm (F)
320 @ 4000rpm (Holden V-car Domestic)
335 @ 4000rpm (Holden V-car Export)

Fuel Shut Off:
6200 rpm
Emissions Controls:
Catalytic Converter
Three-Way Catalyst
Air Injection Reaction (F-car only)
Positive Crankcase Ventilation
Exhaust Gas Recirculation (F)

Materials:
Block: Cast Aluminum
Cylinder Head: Cast Aluminum
Intake Manifold: Composite
Exhaust Manifold: Insulated Wall Dual Stainless Steel (Y), High Silicon Molybdenum Cast Nodular Iron
Main Bearing Caps: Powder Metal
Crankshaft: Cast Iron with Undercut and Rolled Fillets
Camshaft: Hollow Steel
Connecting Rods: Powder Metal

Additional Features:
• Extended Life Spark Plugs
• Extended Life Coolant
• Oil Level Sensor

LS1 Equipted Vehicles:
• Chevrolet Corvette
• Chevrolet Camaro (Z28)
• Pontiac Firebird (Formula/Trans Am)
• Holden Commodore
• Opel Omega

Cost to install in a Pontiac Fiero. $15,000 turnkey ( I will even provide a 4 cylinder 85-87 coupe with this price)

Cost to install in a Pontiac Grand Prix. $15,000
Kits are available for transverse conversion today. Limited number however. See this webpage for outline: http://www.ls1swap.com/forums

Feel free to call me and find out about these exciting engines.

972-880-6643

FastFieros is proud to have purchased a CNC Mill and lathe just recently to bring the LS1/LS6 and even the new LS2 installs to Fieros and any W chassis car.

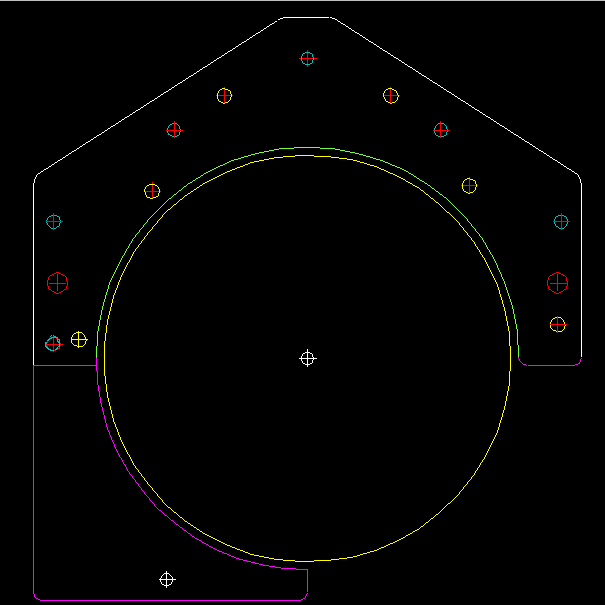

With this new equipment comes learning new software to make the most use of this process with the best repeatability and close tolerances. Here is the motorplate just designed with MasterCam version 9 to have exact drill and cut processes each time one of these is made.

The yellow circle holes are the Metric 6 bolt pattern of the 4T65eHD transmission, and the bluegreen holes with red crosshairs are LS1 pattern holes. Then the red circles with red crosshairs are dowel pin holes.
